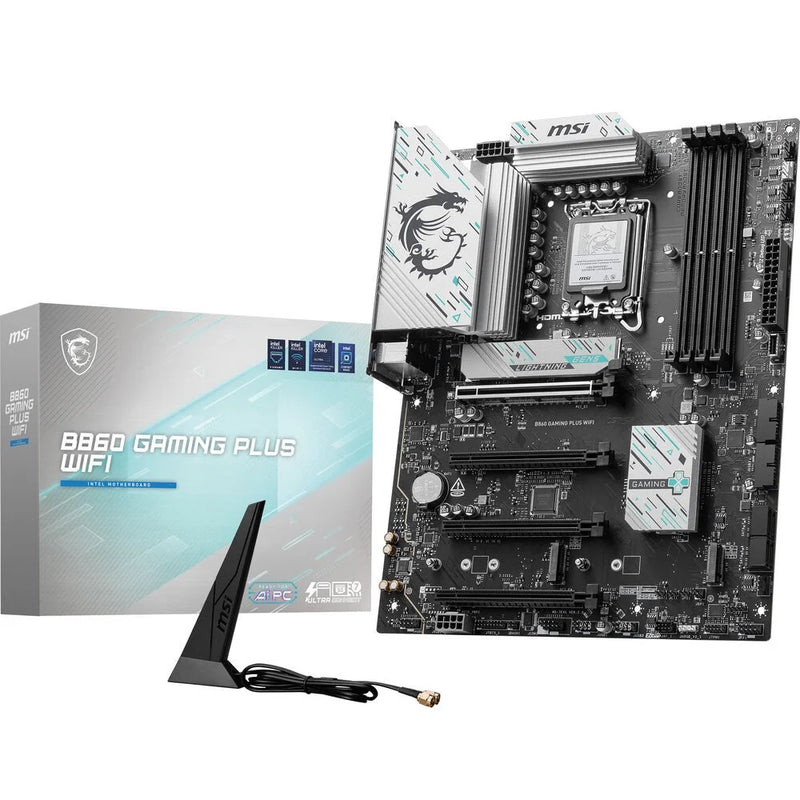

MSI B860 GAMING PLUS WIFI LGA 1851 ATX Motherboard
Product Description
▼Lay the foundation of your next gaming rig with the MSI B860 GAMING PLUS WIFI AM5 ATX Motherboard from MSI. Featuring a premium design with support for overclocking, this motherboard delivers a comprehensive and versatile experience for gamers looking to optimize their setup.
Supporting the LGA 1851 socket and B860 chipset, you can install an Intel Core Ultra Series 2 processor and customize the performance to fit your needs. Up to 256GB of dual-channel 8800 MHz DDR5 memory may be installed in overclocked mode across four slots to deliver smooth multitasking. A PCIe 5.0 x16 expansion slot allows you to utilize Nvidia’s 50-series graphics cards and still have access to three additional PCIe 4.0 slots. In addition to four SATA III drives, you can install lightning-fast SSDs into the M.2 NVMe PCIe 5.0 slot and the two additional M.2 NVMe PCIe 4.0 slots. The rear panel includes extensive connectivity, including one Thunderbolt 4 port, two USB-A 3.2 Gen 2 ports, two 5 Gb/s USB-A ports, as well as four USB 2.0 connectors. Integrated Wi-Fi 7 (802.11be) support and a 5G Ethernet port let you connect to compatible high-speed networks. Windows 11 64-bit is required to take advantage of all the motherboard’s features.
- ULTRA POWER – SUPPORTS THE LATEST INTEL CORE ULTRA PROCESSORS (Series 2) IN HIGH PERFORMANCE – The B860 GAMING PLUS WIFI employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel B860 chipset with Core Boost architecture
- FROZR GUARD – Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
- DDR5 MEMORY, PCIe 5.0 x16 SLOT – 4 x DDR5 DIMM SMT slots enable excellent memory overclocking speeds (1DPC 1R, 8800+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards
- TRIPLE M.2 CONNECTORS – Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot
- ULTRA CONNECT – Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & Intel Killer 5G LAN; Rear ports include Thunderbolt 4 Type-C with display output and 7.1 HD Audio with Audio Boost
