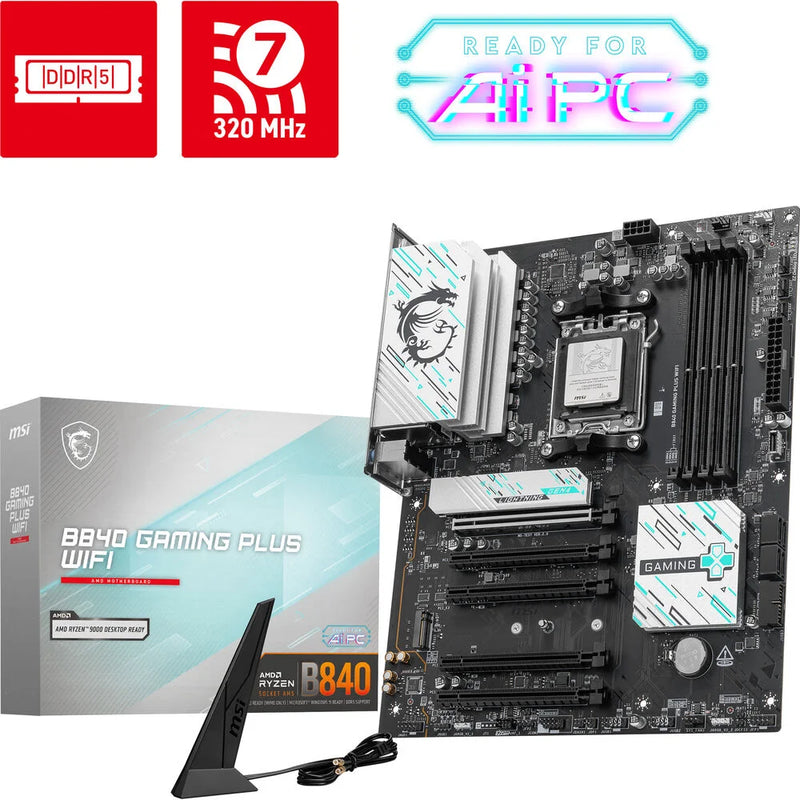

MSI B840 GAMING PLUS WIFI AM5 ATX Motherboard

Lay the foundation of your next gaming rig with the MSI B840 GAMING PLUS WIFI AM5 ATX Motherboard from MSI. Featuring a premium design with support for Wi-Fi 7, this motherboard delivers a comprehensive and versatile experience for gamers looking to optimize their setup.

Supporting the AMD AM5 socket and B840 chipset, you can install an AMD Ryzen 7000, 8000, or 9000 series processor and customize the performance to fit your needs. Up to 256GB of dual-channel 8000 MHz DDR5 memory may be installed in overclocked mode across four slots to deliver smooth multitasking. A PCIe 4.0 x16 expansion slot allows you to install powerful graphics cards and still have access to additional PCIe 3.0 x1 and x4 card slots. In addition to four SATA III drives, you can install lightning-fast SSDs into the M.2 NVMe PCIe 4.0 slots. The rear panel includes extensive connectivity, including 10 Gb/s USB-C and USB-A 3.2 Gen 2 ports, two 5 Gb/s USB-A ports, as well as four USB 2.0 connectors. Integrated Wi-Fi 7 (802.11b) support and a 2.5G Ethernet port let you connect to compatible high-speed networks. Windows 11 64-bit is required to take advantage of all the motherboard’s features.

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
