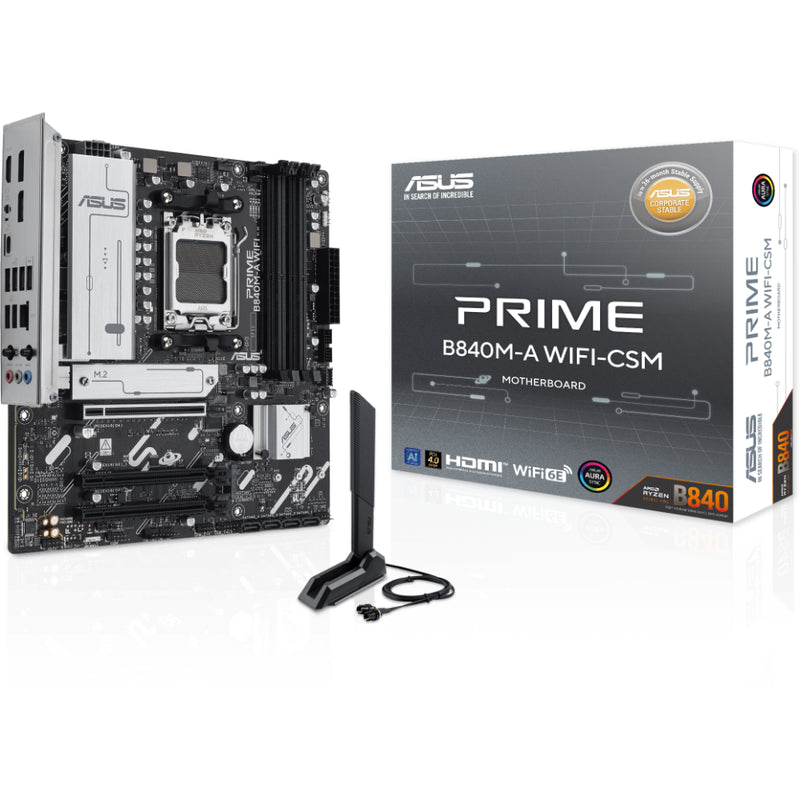

ASUS PRIME B840M-A WIFI-CSM DDR5 AM5 micro-ATX Motherboard
Product Description
▼Designed to provide businesses and first-time builders with stable and reliable performance, the ASUS PRIME B840M-A WIFI-CSM Motherboard may be outfitted to drive immersive entertainment and high-quality content creation. With support for AMD Ryzen 7000, 8000, and 9000 series desktop processors with the AM5 socket, this M-ATX motherboard fits compact cases while delivering smooth performance for demanding applications and AI workloads.
Install an M.2 PCIe 4.0 alongside a 3.0 SSD and four SATA III drives, providing you with plenty of space to store your applications and multimedia files. The four DDR5 DIMM slots support up to 192GB of 7600 MT/s overclocked memory. You can install a powerful graphics cards into the two PCIe 4.0 x16 slots while reserving the two PCIe 3.0 x16 (x1 mode) slots for other compatible expansions.
The rear panel features two 10 Gb/s compatible USB-A ports alongside a USB-C 3.2 Gen 1 ports that work with 5 Gb/s devices. You can use the four USB-A 2.0 ports for keyboards, mice, and other peripherals. Built-in Wi-Fi 6E (802.11ax) support and a 2.5 Gb/s Ethernet port provide you with fast connections to compatible network devices for smooth video streaming and low-latency online games. Use the HDMI 2.1 and two DisplayPort 1.4 ports work with CPUs with integrated graphics. Windows 10 or later is required to take advantage of all this motherboard’s features.
- ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
- Ultrafast Connectivity: Wi-Fi 6E, PCIe 4.0 x16 slot, PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, rear and front USB 5Gbps Type-C support
- Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack, M.2 heatsink, Q-Antenna, Q-Dashboard, Q-LED Core
