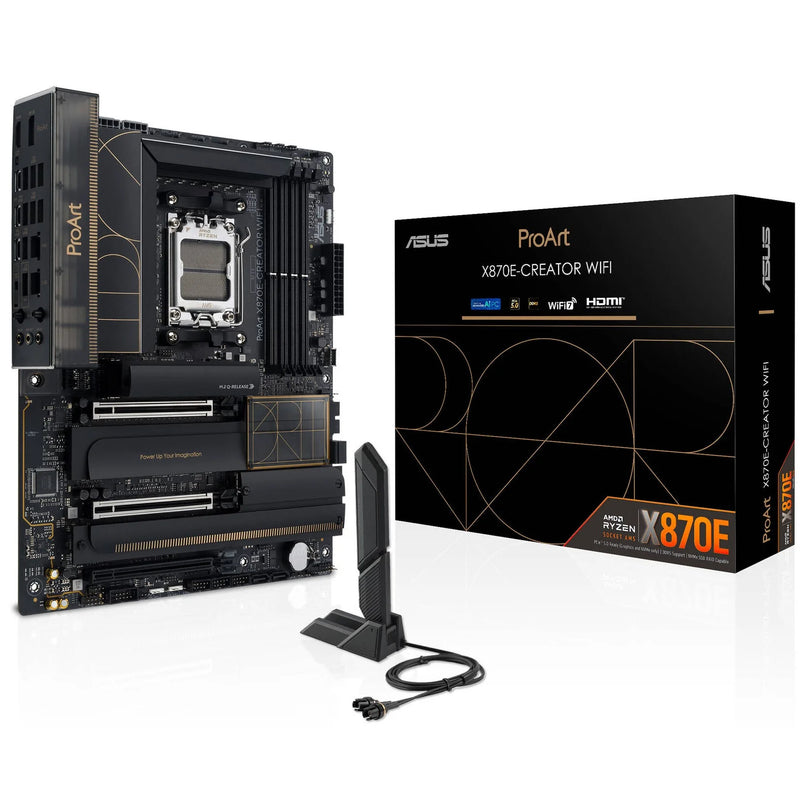

ASUS ProArt X870E-CREATOR WiFi AMD AM5 X870E ATX Motherboard

Designed primarily for creative professionals and enthusiasts, the ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard supports up to AMD 8000 and 9000 series socket AM5 processors while providing robust connectivity to enhance your workflow.

Four DDR5 DIMM slots are available, supporting up to 192GB of memory for smooth multitasking, large projects, and demanding applications. For storage, you can install up to two M.2 PCIe 5.0 x4 SSDs alongside one PCIe 4.0 M.2 2280 and an M.2 22110 drive. There are also four SATA III connectors. Install up to two PCIe 5.0 x16 expansion cards, which can work in x16 or x8/x8 modes, in addition to a PCIe 4.0 x16 card in x4 mode. With two USB4 ports on the rear panel, you can connect 40 Gb/s compatible devices or a USB-C compatible 8K display. They are complemented by a 20 Gb/s USB-C port and seven 10 Gb/s compatible USB-A ports. One USB-A 2.0 port is available for peripherals such as a wireless keyboard adapter. Built-in Wi-Fi 7 (802.11be) support, a 10 Gb/s Ethernet port, and a 2.5 Gb/s Ethernet port provide exceptionally fast connections to compatible network devices. Windows 11 is required to take advantage of all the motherboard’s features.

• Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
• Robust performance: 16+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
• Future-proofed connectivity: Dual USB4 ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+
• Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling and AI Networking II, Dynamic OC Switcher, and Core Flex
• DIY-Friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack, Q-Connector
• ProArt gives you more: ProArt Creator Hub with Color Management working in conjunction with Pantone’s proprietary utilities for one-stop system control and creation related settings
• Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
